Polyarylethersulfone (PAES) is a family of high-performance thermoplastic engineering polymers renowned for their exceptional chemical resistance, thermal stability, and mechanical robustness. Designed for extreme environments where other plastics fail, PAES exhibits a continuous service temperature of up to 200℃ and glass transition temperature (Tg) of ≈220℃, making it suitable for aerospace, oil & gas, medical, and industrial applications. Unlike similar polymers (e.g., PEEK, PPSU), PAES offers a unique balance of high-temperature performance and cost-effectiveness, with excellent resistance to aggressive chemicals (e.g., concentrated acids, alkalis, and organic solvents). Its processability via injection molding, extrusion, and 3D printing also enables the production of complex parts, from aerospace components to chemical processing equipment.
PAES delivers exceptional thermal performance, with a continuous service temperature of ≥200℃ and short-term heat resistance up to 260℃ (for intermittent use). It retains >80% of its mechanical properties after 10,000 hours of exposure to 180℃ (per ISO 2578), making it ideal for long-term high-temperature applications like aerospace engine components and industrial oven parts. Unlike PPSU (Tg ≈185℃), PAES’s higher Tg (≈220℃) ensures it remains rigid and stable in more extreme heat, preventing deformation in critical parts.
PAES is virtually unaffected by most aggressive chemicals, including 98% sulfuric acid, 50% sodium hydroxide, and organic solvents like acetone, methylene chloride, and toluene. This resistance is maintained even at elevated temperatures (up to 150℃), making it suitable for chemical processing equipment that handles corrosive fluids. For example, PAES valves in petrochemical plants withstand prolonged exposure to crude oil and acidic byproducts without degradation, outperforming metals like stainless steel in terms of corrosion resistance and weight.
PAES boasts excellent tensile strength (≈85 MPa), flexural strength (≈120 MPa), and impact resistance (Izod notched impact strength: ≈70 J/m at 23℃), even at elevated temperatures. It exhibits low creep (deformation under constant load) at 180℃—with creep strain <2% after 1,000 hours under 50 MPa (per ISO 899-1)—making it suitable for structural components like aerospace brackets and industrial pump impellers. Its toughness also ensures resistance to sudden impacts, critical for parts like oil & gas downhole tools that face mechanical stress during deployment.
With a volume resistivity of >10¹⁶ Ω·cm and dielectric strength of ≈20 kV/mm (at 23℃), PAES is an outstanding electrical insulator. These properties are maintained across a wide temperature range (–50℃ to 200℃) and in humid environments (relative humidity >90%), making it suitable for high-voltage electronic components. For example, PAES insulation in aerospace wiring systems prevents electrical leakage even at extreme temperatures and altitude, ensuring reliable signal transmission.
Medical-grade PAES complies with ISO 10993-1 (biocompatibility) and USP Class VI standards, making it safe for use in implantable devices and surgical instruments. It withstands multiple sterilization cycles, including autoclaving (134℃, 2 bar), ethylene oxide (EO) sterilization, and gamma radiation (25 kGy), without losing mechanical or chemical properties. This makes it ideal for reusable medical tools like laparoscopic graspers and implantable components like orthopedic spacers.
• CAS Number: 25608-63-3 (generic for PAES family; specific grades may have unique identifiers)
• Molecular Formula: (C₁₂H₈O₃S)ₙ (varies slightly by grade, but core structure remains consistent)
• Molecular Weight: 40,000–80,000 (high molecular weight ensures mechanical and chemical performance)

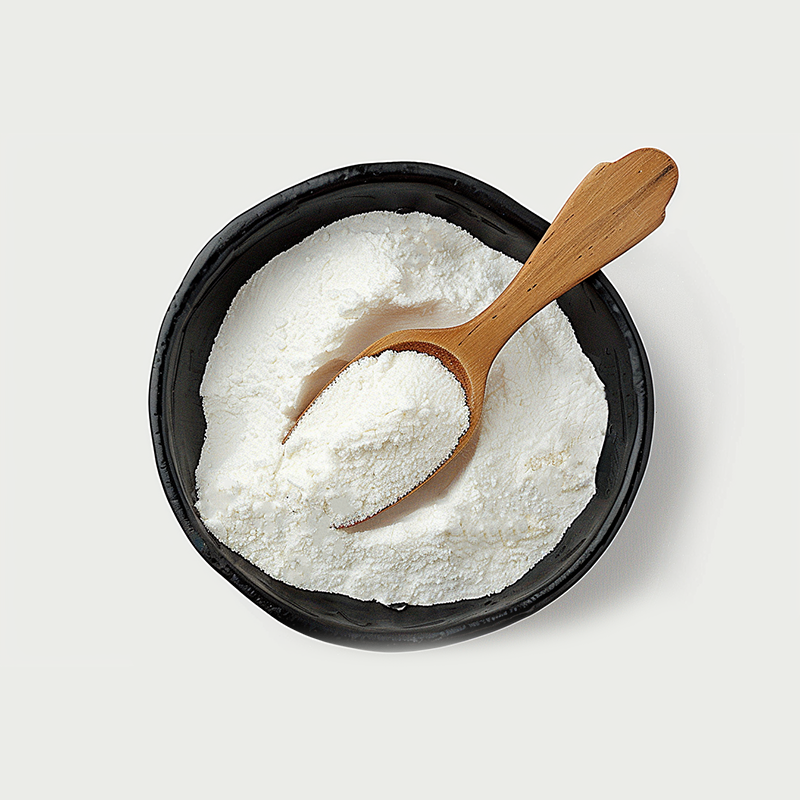

• Appearance: Off-white to light brown granule (opaque; some grades offer translucent options)
• Density: ≈1.37 g/cm³ (lighter than metals like aluminum, ideal for weight-sensitive applications)
• Continuous Service Temperature: Up to 200℃
• Glass Transition Temperature (Tg): ≈220℃
• Melting Point (semi-crystalline grades): ≈310℃ (amorphous grades have no distinct melting point)
• Water Absorption: <0.5% (24h @ 23℃, per ISO 62)
• Biocompatibility: ISO 10993-1, USP Class VI
• Flame Rating: UL94 V-0 (1.6mm thickness, inherent flame retardancy)
• Electrical Insulation: Meets IEC 60243-1 (dielectric strength) and IEC 60093 (volume resistivity)
In aerospace, PAES is used for engine components (e.g., sensor housings, fuel line connectors), cabin interior parts (e.g., overhead bin latches), and wiring insulation. Its thermal stability (up to 200℃) withstands engine heat, while its lightweight nature (density ≈1.37 g/cm³) reduces aircraft weight—improving fuel efficiency. For example, PAES fuel line connectors in commercial jets resist aviation fuel corrosion and temperature fluctuations, ensuring safe fuel delivery during flight.
PAES is employed in oil & gas downhole tools (e.g., logging instrument housings, valve seats) and surface equipment (e.g., chemical storage tanks, pump casings). Its chemical resistance to crude oil, drilling fluids, and acidic gases (e.g., H₂S) prevents corrosion, while its mechanical strength withstands high downhole pressures (up to 10,000 psi). For instance, PAES logging instrument housings in offshore wells protect sensitive electronics from corrosive seawater and high temperatures, ensuring accurate data collection.
Medical-grade PAES is used for implantable devices (e.g., orthopedic spacers, dental abutments) and reusable surgical instruments (e.g., endoscopic scissors, forceps). Its biocompatibility (ISO 10993) ensures safe contact with human tissue, while its sterilization resistance allows repeated use of tools. For example, PAES orthopedic spacers in joint replacement surgeries integrate with bone tissue and withstand body fluids without degradation, reducing the need for revision surgeries.
In industrial settings, PAES is used for chemical processing equipment (e.g., valves, pumps, heat exchangers), industrial oven components (e.g., conveyor belts, heating element supports), and high-voltage electrical insulators. Its chemical resistance to industrial solvents and thermal stability at 200℃ make it suitable for handling corrosive fluids in pharmaceutical and petrochemical plants. For example, PAES heat exchangers in pharmaceutical production lines withstand repeated cleaning with strong disinfectants, maintaining hygiene and process efficiency.
